Tool Room Equipment

Wire EDM

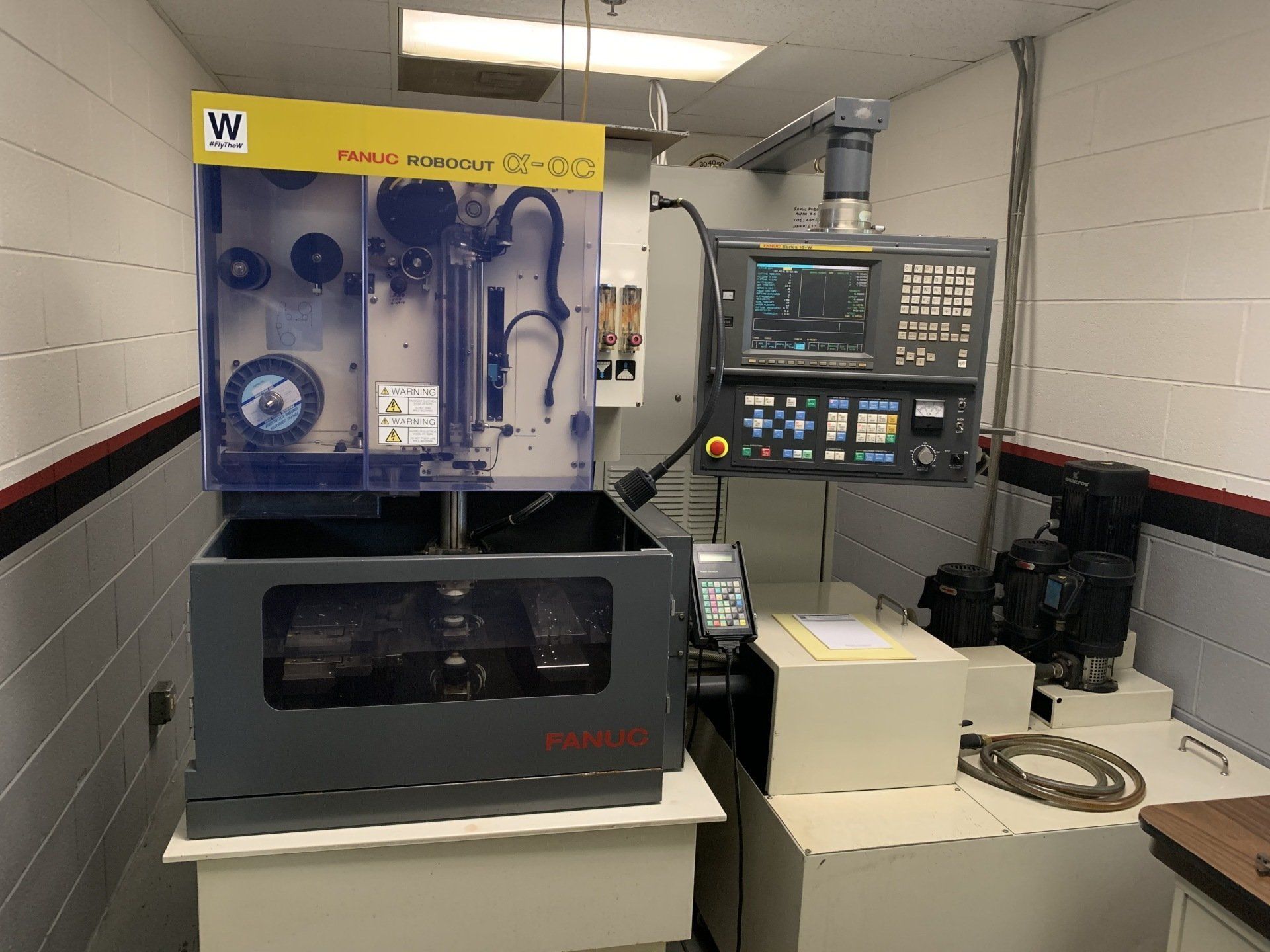

- Fanuc Robocut EDM Machine w/qwf 8.5" x 12.5" x 6" capacity
- Auto-thread capability
Button

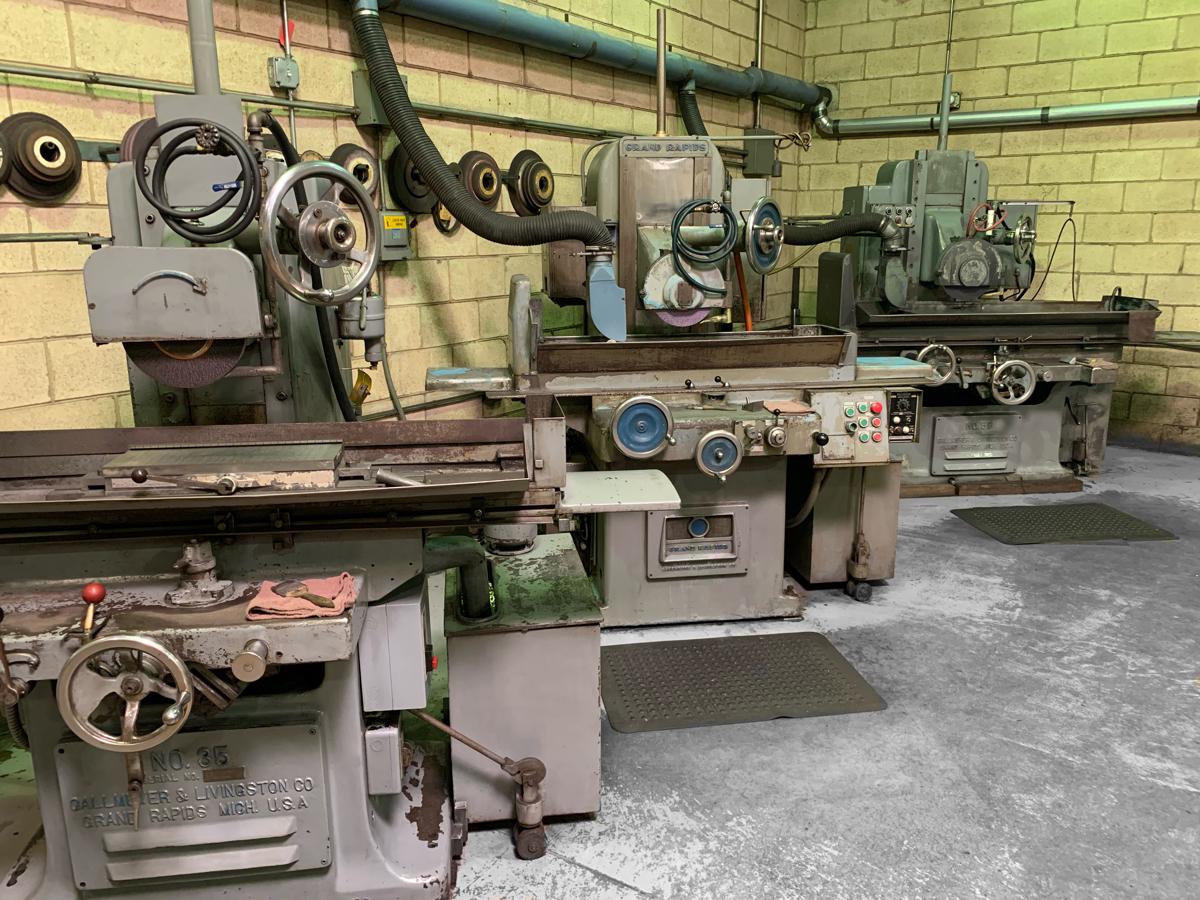

Grinders
- Gallmeyer-Livingston #25 - 6" x 18" table - comp. hydraulic
- Gallmeyer-Livingston #25 - 6" x 12" table
- Gallmeyer-Livingston #55 - 6" x 18" table - comp. hydraulic
- Gallmeyer-Livingston #35 - 8" x 24" table - comp. hydraulic
- Taft-Pierce-CarbideDedicated - 5" 10" table
- Landis-Cylindrical - 6' x 18" CH
- Taft-Pierce (carbide dedicated)
Button
Milling Machines

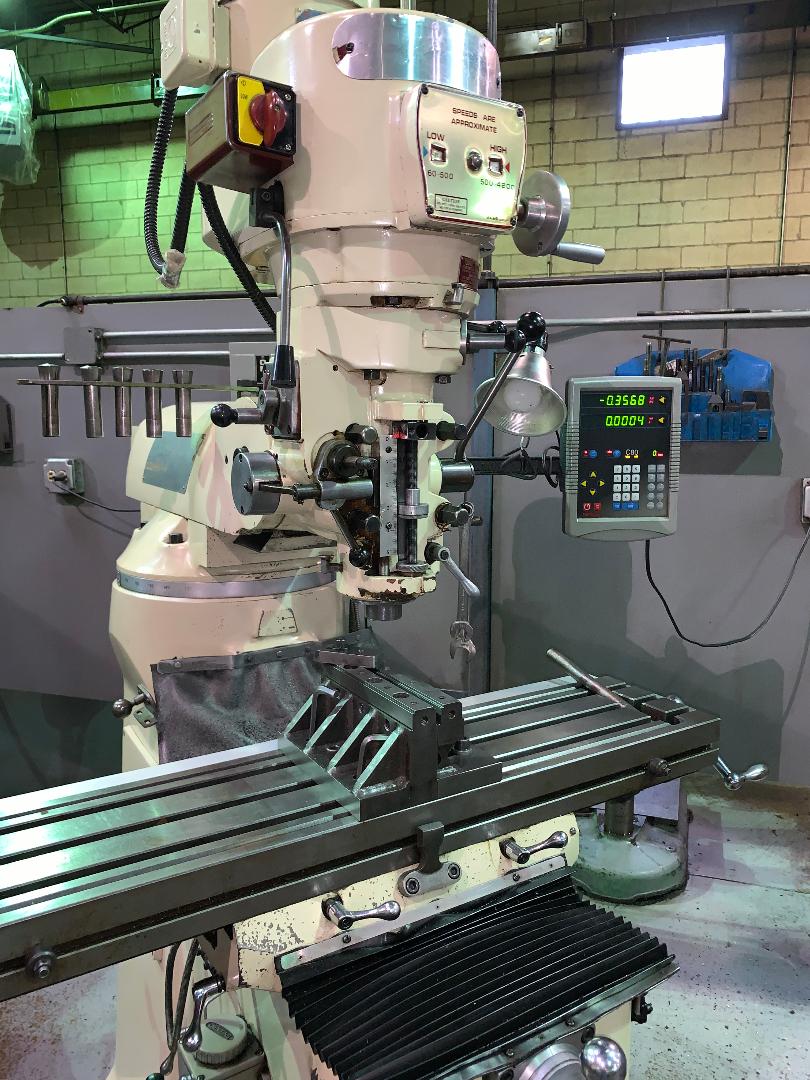

- Bridgeports - late models well equiped-turn table, dividing head, right angle drive, vices, angle plates & special fixtures, grinding attachment & digital readouts
- Kearney & Trecker #3K Horizontal with Vertical Universal Head, Arbors, 6" - 8" Future Mills, 14" Diameter Face Cutters and Complete Tools
Button

Drilling Machines
- 4' X 15" American Radial Drill - #5 taper
- 3" Arm Arboda radial drill - #4 taper
- Walker-Turner Floor Model - #3 taper, automatic feed
- Walker-Turner Floor Model - #2 taper, automatic feed & tapping attachment
Button

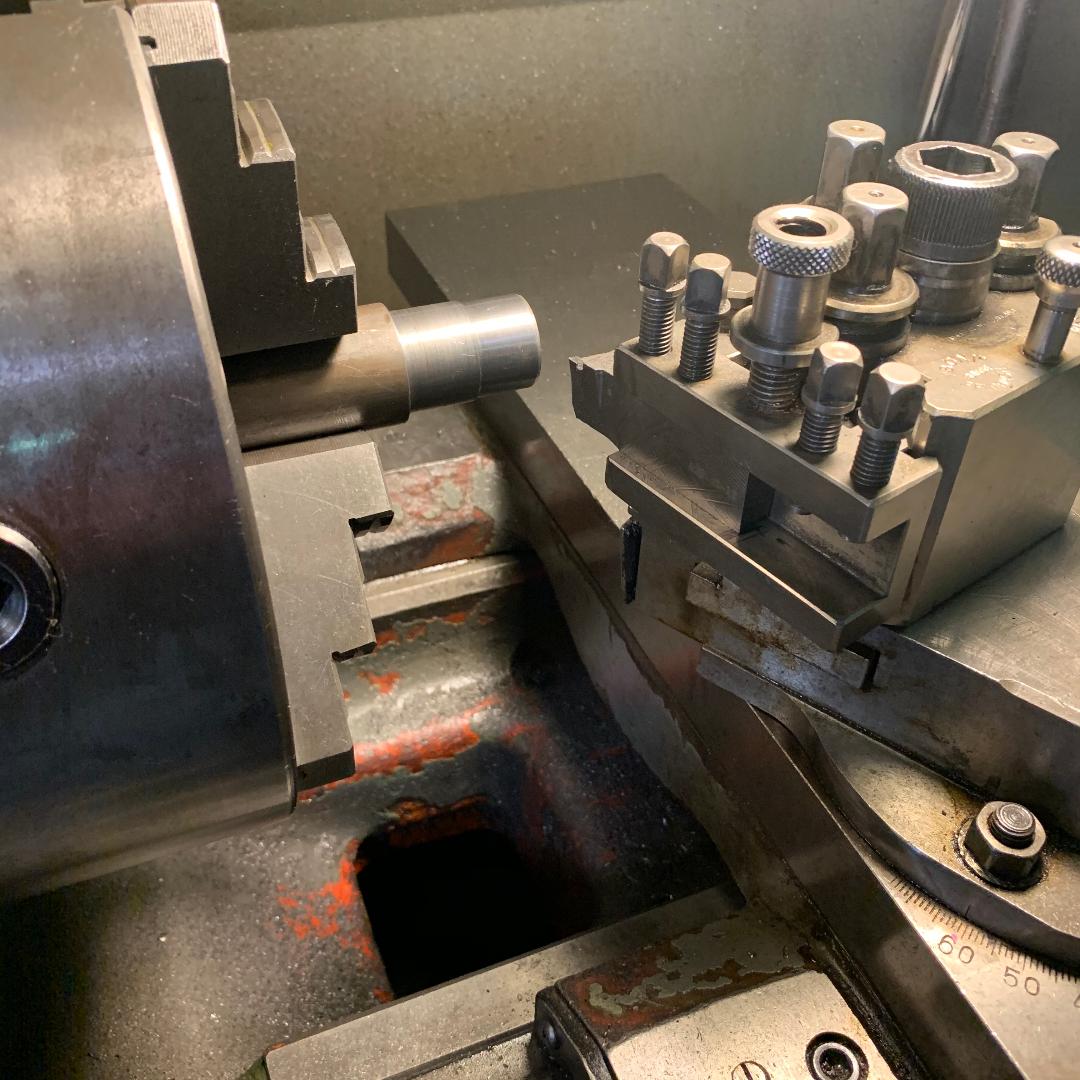

Lathes
- Rivett Tool Makers Lathe - fully equiped
- LeBlond Engine Lathe - 16' 44" between centers, 4 jaw, 3 jaw, face plate, air chuck, steady rest, 6 station turrent & mimic tracer
- Leblond 24" Regal Engine Lathe - 8 ' between centers, 4 jaw, 3 jaw, face plate, steady rest & taper attachment
Button
Inspection Equipment

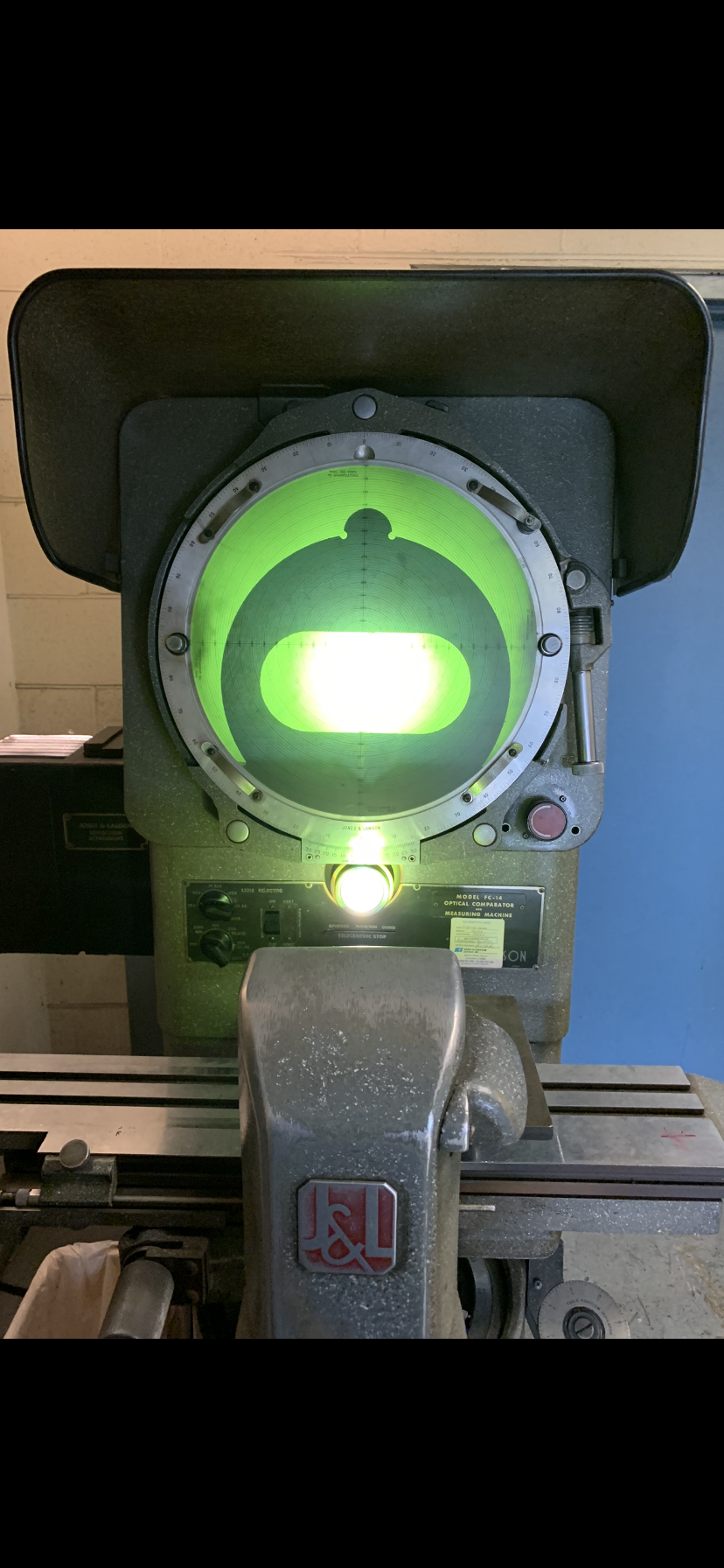

- Jones & Lamson 14" Comparator - 20 Power
- Jones & Lamson 14" Comparator - 10, 20, 50 Power Lenses, radius screens helix angle and reflection attachment
- 24' x 36" black granite surface plate
- 24" x 24" black granite surface Plate
- 18" x 24" black granite surface plate
- 12" Mitutoyo height master
- 104 Piece Do-All Carbide J-Block Set
- 82 piece inspection grade J-block set
- Set of micrometers 1-12
